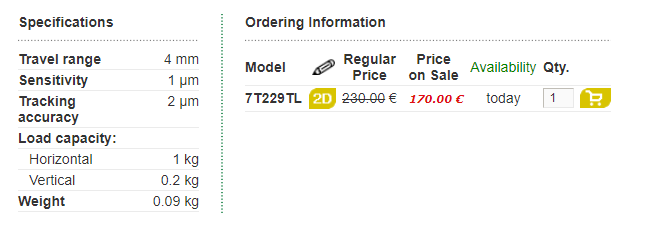

Micro Translation Stage 7T229TL provides smooth, precise two-axis movement. Fine adjustment screws are positioned in a way the unit is controlled only from one side. That's why 7T229TL is very handy in optical schemes with very dense placement of instruments. The travel of this stage is 4mm with sensitivity of 1 µm. To mount components on it, M3 tapped holes are provided. The stage can be directly mounted on breadboards and other Standa equipment by use of mounting holes M3 and M2. Angle bracket 2AB128 may be used to combine the stage with other units. The base and the platform are made of black anodized aluminium.

Model 7T229TL is currently on sale.
