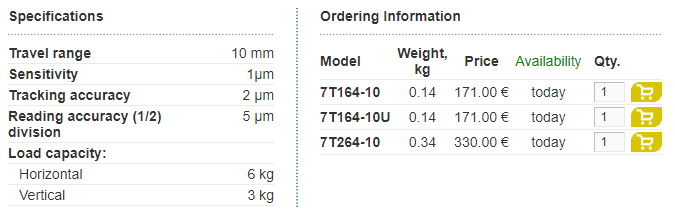

Ultra Low Profile Two Axis 7T264-10 and Single Axis 7T164-10 Translation Stages. The height of single axis translation stage is 10.5 mm and two axis translation stage - 20 mm. To match the low height of the stage Thin Micrometers 9S55-10 with small knob diameter (13 mm) are used as driving screws. It is possible to easily combine 7T264-10, 7T164-10 and angle bracket 2AB164 to have 3 axis translation system. Difference between models 7T164-10 and 7T164-10U is that the 7T164-10U has a reversed central hole compared to the 7T164-10. Although the system looks very light and thin, it is very reliable and precise.
![](http://www.standa.lt/images/graphics/1312898883.jpg) |
![](http://www.standa.lt/images/graphics/1312900732.jpg)
Base Plates 3UBP-04 and 3UBP-03 fit the stages just as fine as 3UBP-02 |
2AB164 |
7T164-10 XYZ |
![](http://www.standa.lt/images/graphics/1365598483.jpg)
Universal Base Plate 3UBP-04 is used to fix stages to flat surface |
![](http://www.standa.lt/images/graphics/1355842048.jpg) |
|
![](http://www.standa.lt/images/graphics/1355842056.jpg) |
Modification with hex screws 7T164-10-9SH127-10 and 7T264-10-9SH127-10 |
In the video below XY manual linear translation stage 7T264-10 is integrated in multi-axis system.
|
![](/uploads/editor/bfa505e864ef22361b491a504b9e22b0.PNG)
