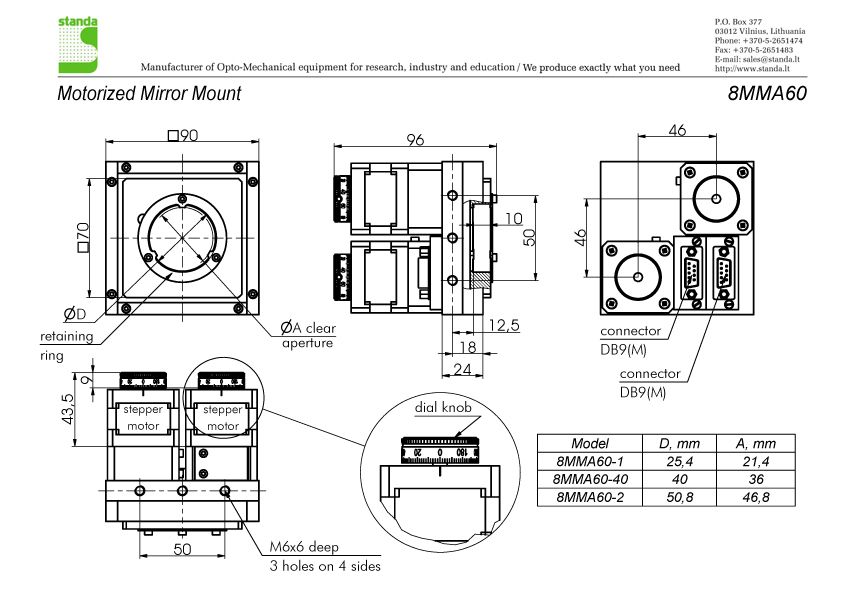

Motorized Mirror Mounts 8MMA60 are designed for precise angular alignment of optical elements. A platform is tilted around two axes. A retaining ring keeps optics in a non-through mounting opening of the platform. The ring is fixed by 3 screws. It has 3 dents with which optics is clamped against similar 3 rests in the platform. The dents are exactly opposite to the rests – this minimizes deformation.
![](/uploads/editor/061286fd7ac526c9b34986ecadffe8f3.PNG)
![](/uploads/editor/c98e20a90c5828744a4e5ec700057e80.jpg)
