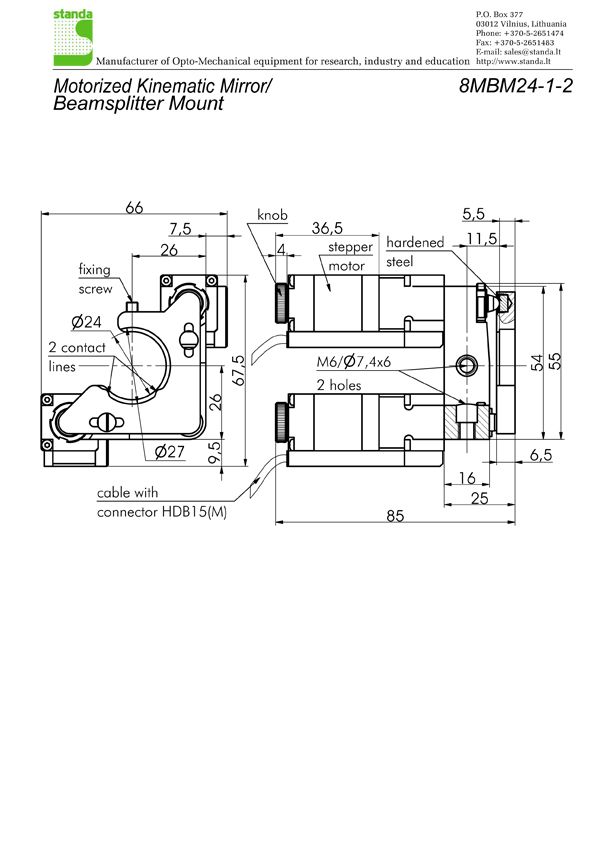

8MBM24 Motorized Mirror Mounts combine our traditional 5MBM24 Kinematic Mirror/Beamsplitter Mount
with our designed Motorized Compact Actuator 8CMA20-8/15. Advantages. More precise positioning than with the manual adjusters. Ideal for use in closed systems. Integrated opto-electrical limit switches prevent damage, while providing homing - repeatability better than 10 arcsec.
| Model |
8MBM24-1 |
8MBM24-2 |
8MBM24-3 |
| Optics diameter |
25,4 mm |
50,8 mm |
76,2 mm |
| Clear aperture |
23 mm |
48 mm |
74 mm |
| Resolution |
<1 arcsec |
<1 arcsec |
<1 arcsec |
| Tilt range (about two axes) |
±4.5° |
±2.8° |
| Speed (Standa 8SMC1-USBh controller) |
from 1 arcsec/sec to 1°/sec |
| Installed actuators |
2 x 8CMA20-8/15 |
| Optocoupler end limit switches |
2 per actuator, pushed is open |
| Cable |
1,2 m length cable included |
| Motor connector |
HDB15(M) (wiring diagram) |
| Recommended controllers |
8SMC5-USB |
