SLM Research Kit 4K (SRK4K) – JD7714
Lcos SLM
The SLM Research Kit 4K (SRK4K) offers 2π phase retardation at different
selectable wavelengths at resolutions of 4096 x 2400 pixels. The SRK4K is
compact, and can aid in the development of a wide-variety of applications
including DOE, HOE, laser processing, holography, WSS, and data storage (HDS)
applications. SRK4K accessories include the wavelength configuration software
and all required cabling.

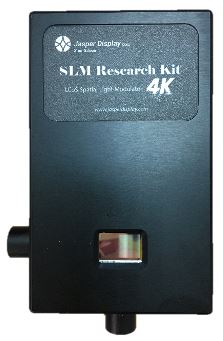

 Figure 1. SRK SLM hardware |
Main Features
- Phase
Modulation
- Input:
8-bit depth monochrome 4096 x 2400 @ 30Hz
- Retardation:
2π @ 532nm, 2π @ 633 nm
- Easy
Addressing Interface using HDMI 1.4 protocols
- SLM
and driver in a single compact package
- Compact
size: 118 mm x 72 mm x 20 mm
- Dual
optical bench mounting points aligned to optical center
- Software
to configure the SLM to address different wavelengths
|
|
Specifications
|
|
Display Type
|
Reflective LCoS
|
|
Resolution
|
4096 x 2400 pixels
|
|
Active Area Diagonal
|
0.7″
|
|
Active Area Dimension
|
14.36 mm × 8.08 mm
|
|
Pixel Pitch
|
3.74 μm
|
|
Fill Factor (Aperture Ratio)
|
≥ 90%
|
|
Waveband
|
430~750 nm, or by panel selection
|
|
Number of Input Gray-Levels
|
256 (8-bit)
|
|
Input Frame Rate
|
30 Hz
|
|
Retardation
|
2π @ 532 nm & 2π @ 633 nm
|
|
Output Refresh Rate
|
120 Hz
|
|
Input Signal I/F
|
HDMI 1.4
|
|
Box Size without Mounting Taps
|
118 mm x 70 mm x 20 mm
|
|
Mounting Holes *2
|
M6 or 1/4”-20
|
|
*1 Compact
enclosure houses SLM driver and microdisplay panel that provide good
mechanical, electrical, and optical noise controls.
*2 Selectable Mounting Taps’ hole sizes before placing
orders. Holes are aligned to the optical center.
Software

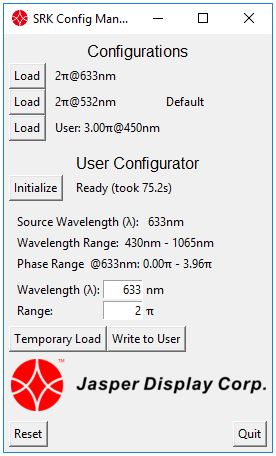

The included SRK
Config Manager software allows the user to configure both the wavelength and
retardation of the SLM. The software runs on a Windows PC which is connected to
the SLM via a USB cable. Two native and one user configuration allow for a
convenient and flexible way to work with a variety of light sources.
Software The included SRK
Config Manager software allows the user to configure both the wavelength and
retardation of the SLM. The software runs on a Windows PC which is connected to
the SLM via a USB cable. Two native and one user configuration allow for a
convenient and flexible way to work with a variety of light sources.
|
 |
Standard Deliverables
|
No.
|
Item
|
|
1
|
Spatial
Light Modulator Hardware
|
|
2
|
USB Drive
loaded with Software & Documents
|
|
3
|
DC 12V/2A
Power Adaptor
|
|
4
|
HDMI Cable
|
|
5
|
Mini USB
to USB Cable
|
|
6
|
MCX to BNC
Cable for HDMI Vsync Output
|
|
7
|
4-pin
Cable for R/G/B Vsync Output
|
|
8
|
Product
Packaging Carton
|
|
